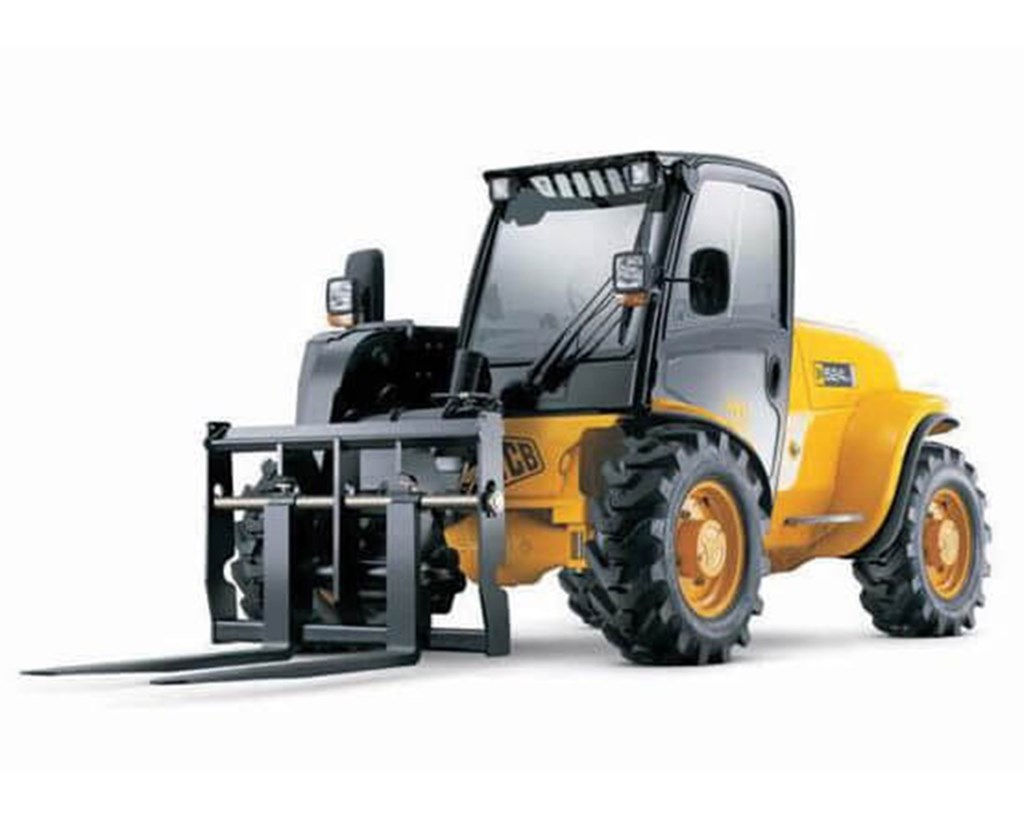

JCB520 Telehandler Loadall

Specification

Dimensions:
Weight 4400 kg
Length 2920 mm
Width 1560 mm
Height 1970 mm
Max Lifting Height 4000 mm
Max Lifting Weight 2000 kg


Engine:
Displacement 4.4 (269) ltr (in3 )
No. of cylinders 4
Bore size 105 (4.13) mm (in)
Stroke 127 (5) mm (in)
Aspiration Naturally aspirated
Power rating 2200rpm
Gross SAE J1349 55.9 (75) kW (HP)
Torque rating 1700rpm
SAE J1349 265 (195) Nm (lbf ft)
Noise level directive 2000/14/EC 104 dBA


Hydraulics:
Machine mode 520-50
Operating system pressure 241 (3500) bar (psi)
Flow at system pressure 65 tr/min
Parameter Value
Cycle times Boom raise 7.4s
Boom lower 5.3s
Extend 5.7s
Retract 3.2s
Bucket dump 2.3s
Bucket crowd 3.2s

Weight	4400 kg
Length	2920 mm
Width	1560 mm
Height	1970 mm
Max Lifting Height	4000 mm
Max Lifting Weight	2000 kg

Displacement	4.4 (269) ltr (in3 )
No. of cylinders	4
Bore size	105 (4.13) mm (in)
Stroke	127 (5) mm (in)
Aspiration	Naturally aspirated
Power rating	2200rpm
Gross SAE J1349	55.9 (75) kW (HP)
Torque rating	1700rpm
SAE J1349	265 (195) Nm (lbf ft)
Noise level directive 2000/14/EC	104 dBA

Machine mode	520-50
Operating system pressure	241 (3500) bar (psi)
Flow at system pressure	65 tr/min
Parameter	Value
Cycle times	Boom raise 7.4s Boom lower 5.3s Extend 5.7s Retract 3.2s Bucket dump 2.3s Bucket crowd 3.2s
